77B 82B PC Strand Machine Wire Induction Heating Equipment With Indent Surface

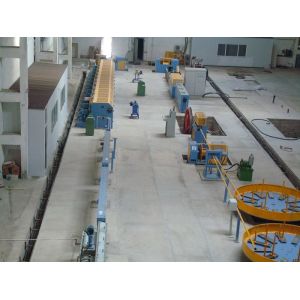

77B 82B PC Wire Induction Heating Production Line With Indent Surface

I. Composition of production line:
1. Uncoil type pay-off rack
2. 900/5 straight feeding type continuous wire drawer
3. Straightener + passive type rotation mould box + three sides indented
4. Medium frequency induction heating furnace
5. Spraying water cooling tank
6. Tension control device
7. Traction machine
8. Shear cutting machine
9. Coiling and package machine
10. Control system

II. Main Technical Parameters of drawing machine:

Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	1200	800	700	560	400
Draw passage	time	9-12	10	9	10	10
Incoming dia	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outgoing dia	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	300	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5

III. Introduction to PC steel Wire induction heating treatment production Line
The whole line of equipments to produce the PC wire with the capacity of 15,000tons annually. The product is smooth, screw-tread or three sides indented surface of PC wire and the diameter range is from φ5.0 to 9.0mm. The quality standard of the production will meet GB/T5223 China and relative international standards. The supplier is responsible for the production process, the quality of product, the function of machines and production capacity in guarantee period.

Type	Nominal Dia.mm	Tensile Strength Mpa	Relaxation(1000h)	Standards
Spiral ribs	3.8,4.0,5.0,6.0,6.25,7.0,7.5, 8.0,9.0,9.4,9.5,10.0,10.5	1470,1570,1670, 1770,1860	Normal≤8% Low relaxation≤2.5%	GB/T5223 BS5896 JISG3536 EN10138-2
Spiral ribs	5.03	1550,1620,1720		ASTMA881 AS/NZS4672.1
Spiral ribs	4.88,4.98,6.35,7.01	1620,1655,1725		ASTMA421

Type	Nominal Dia.mm	Tensile Strength Mpa	Relaxation(1000h)	Standards
Plain Surface	3.0,4.0,5.0	1470,1570,1670,1770, 1860	Normal≤8% Low relaxation≤2.5%	GB/T5223 ASTMA421 ISO6934-2 Bs5896 TIS95-2540 AS/NZS4672 JISG3536 UNE36094 ASTMA648 EN10138-2 SS141757 NEN3868 ASTMA911
	6.0,7.0,8.0	1470,1570,1670,1770
	9.0,10.0,12.0	1470,1570,1670
